Material Storage & transportation System

Based on a brilliant engineering background, combined with the latest design concepts, CHIAO FONG HANG has successfully designed and built an overhead, upstairs parts storage and conveyor system. This all-new conveyor system provides full utilization of a factory's upper space, and efficient parts supply to the assembly line. After being machined, the parts are automatically delivered to the upstairs warehouse, where they can be stocked in specific areas. Parts in stock are computer controlled for supplying and selection as needed. The conveyor system provides unmanned stock control and excellent parts delivery performance.

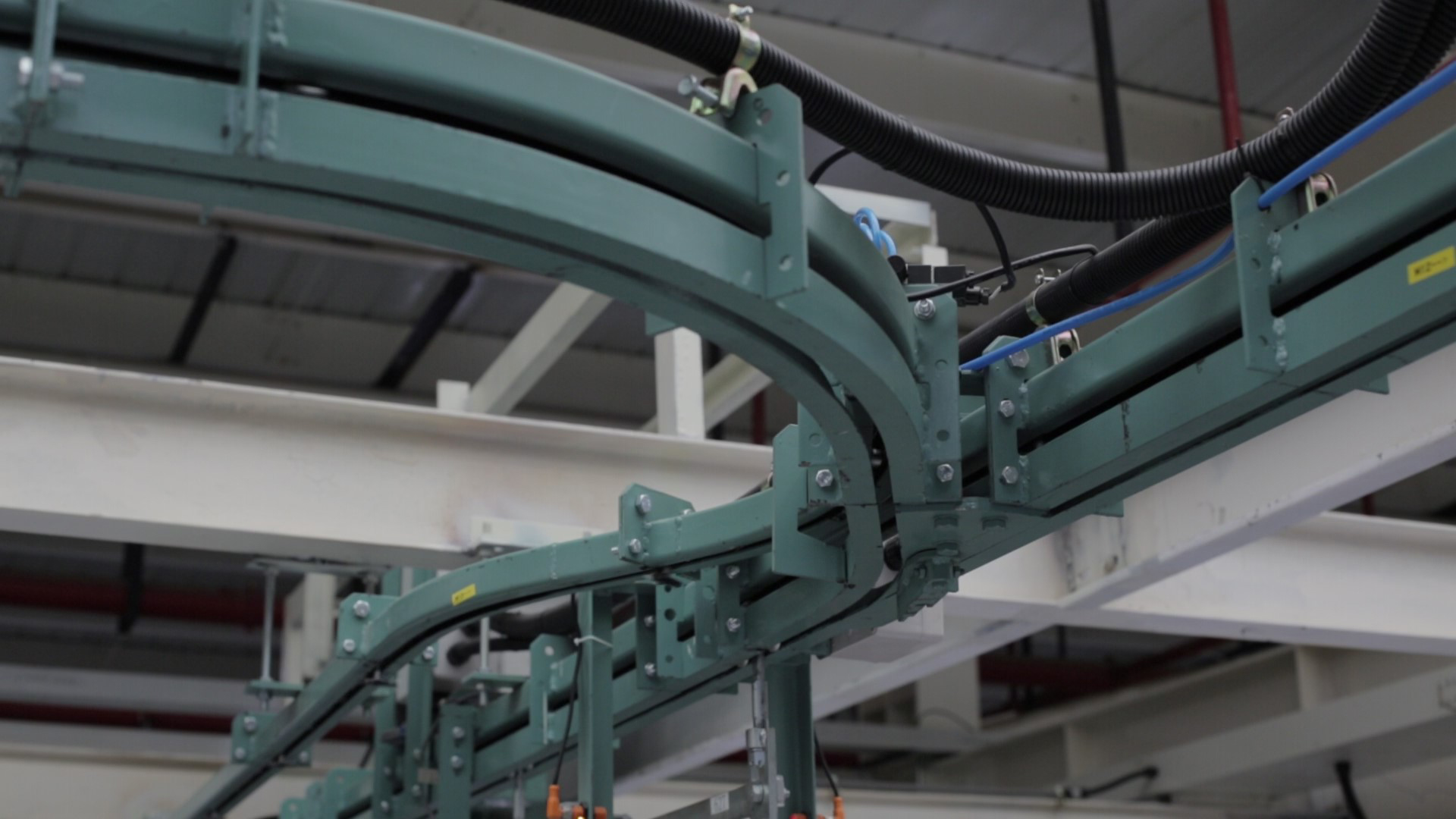

Power And Free Conveyors

OUTSTANDING FEATURES:

1. The empty carrier can be tilted for double row storage, greatly saving space.
2. Maximum loading capacity on each carrier is 50-250 kg.
3. Parts can be vertically lowered by a dip unit for added space saving.
4. The track switch allows the parts to be delivered to different area. Also, parts in various areas can be collected together.
5. ldeal for long distance delivery. Superior anti-fatigue performance.
6. lt can stop at any workstation as desired, without affecting the running of the rest of the production line.

• COMPUTER CONTROL STATION

This powerful computer provides part supply and selection as needed. Stock and quantity for any part is precisely controlled.

• The track switch allows the parts to be delivered to different lines.

Also part in various areas can be collected together.

• Employed with a double rail conveyor for elevating products, greatly saving space.

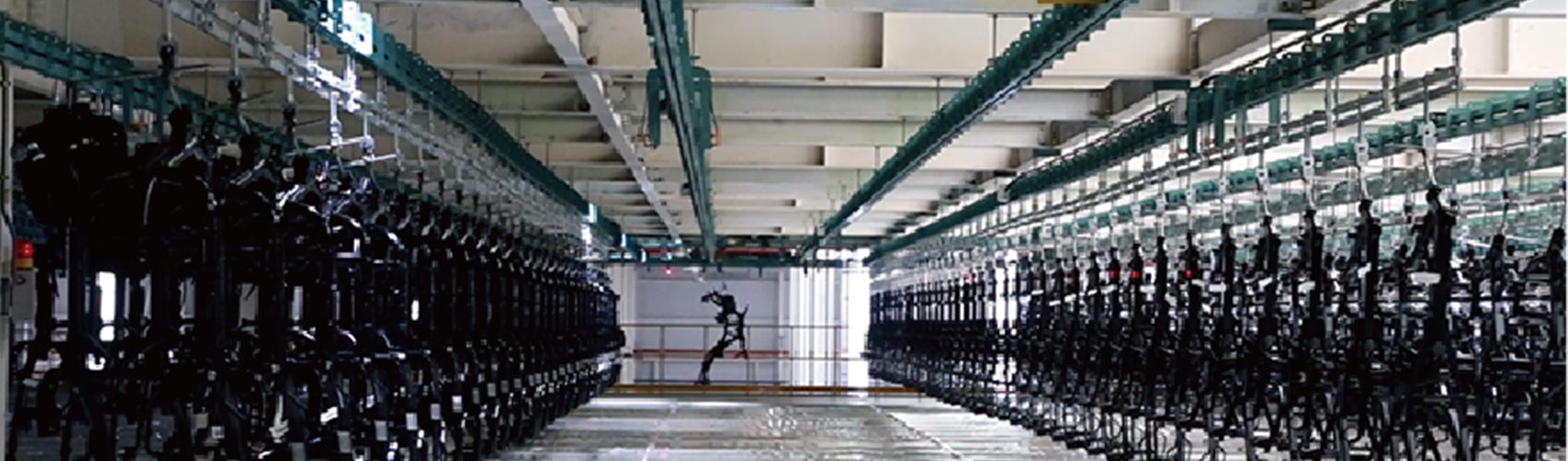

Loop Storage Ares
